153 Photos
2012 Link-Belt 330LX Track Material Handler
Located
Edmonton, AB, CAN
Edmonton, AB, CAN
Usage
20,790 hrs
20,790 hrs
Serial number
LBX330Q3N9MHX7443
LBX330Q3N9MHX7443
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15080167
In yard
No
Features
Air Conditioner, Straight Travel Pedal, Cab Screens, Tilting Cab, Tier 3, 2021 US EPA Label, 20 ft Stick, Auxiliary Hydraulic Plumbing, 31.5 in Triple Grouser Track Shoes, Grapple, Catwalks
Hydraulics

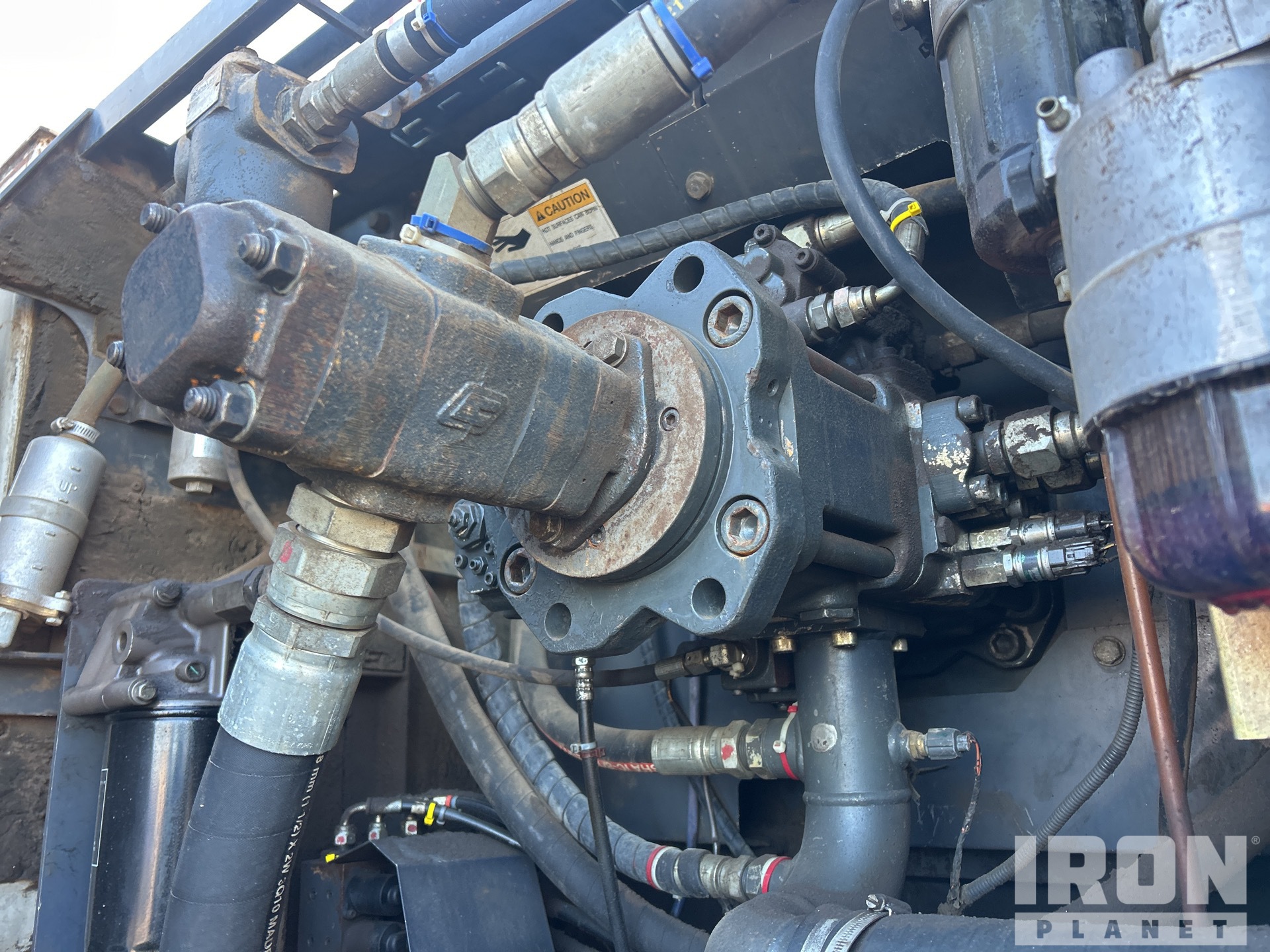

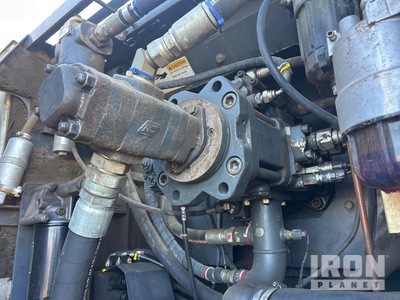

Pumps (Hydraulics)

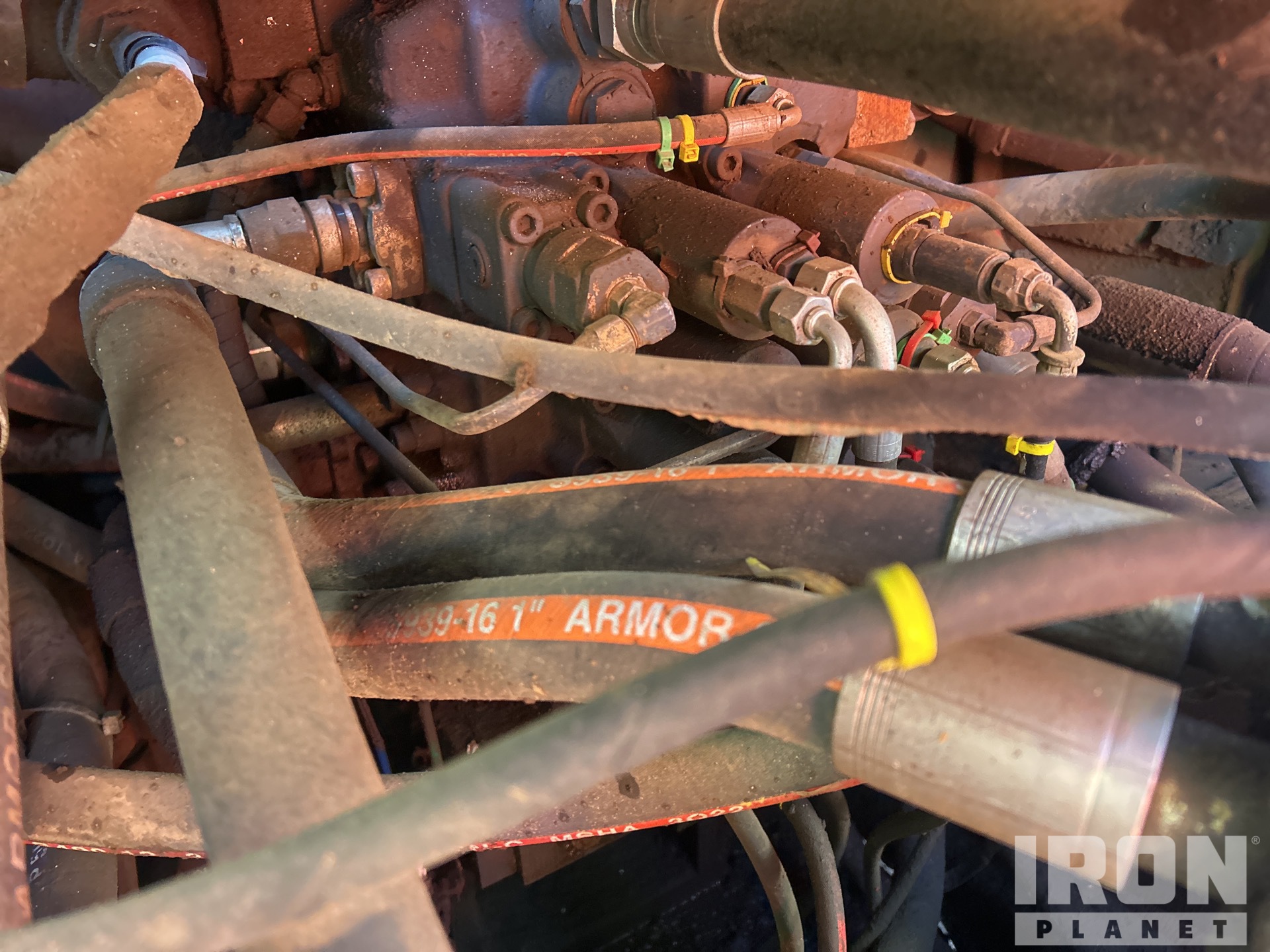

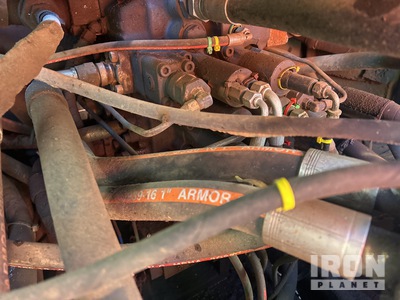

Valves

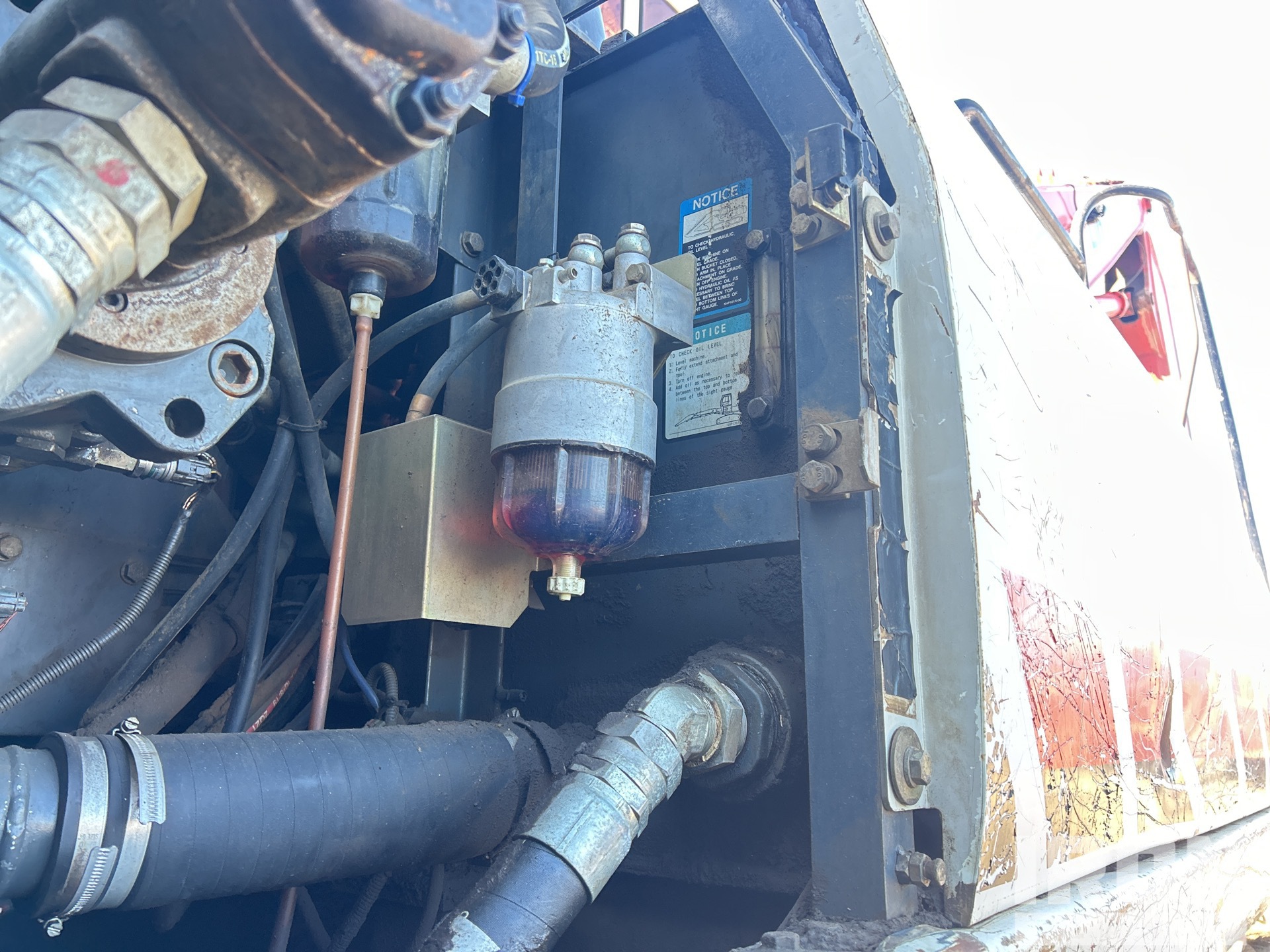

Hydraulic Tank
Hoses (Hydraulics)
Oil leaking below swing motor. Could not confirm source of leak.
Swing Motor
Boom Lift Cylinder(s)
Dripping leak on the right cylinder, Heavy pin and bushing movement
Stick Cylinder
Dripping leak, Heavy pin and bushing movement
Limited Function Check
The hydraulic system was operational.
General Appearance
Serial Number / VIN
LBX330Q3N9MHX7443
Hour Meter / Odometer
20790 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Latch on cab window is broken. Front window doesn’t latch closed or seal.
Exterior Lights
Some not operational, Boom Light lights are not operational
Safety
Travel Alarm
Operational
Horn
Operational
Safety Lock Out/Stop
Operational
Swing Brake
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/Armrests
Mirrors
Steering Controls
Hydraulic Controls
Auxiliary Hydraulic Control
Drivetrain Controls
Dash Console
Engine Oil Pressure
No oil pressure indicator
Warning Lights
Operational, Service Due light stays on
Gauges
Operational
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
2021 US EPA Label
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran. Belt noise when engine is started or under load. Engine does not run smoothly when hydraulics are engaged and engine speed is increased.
Electric Power System
Operating Voltage
230 Volts
Cables and Connections
Limited Function Check
Not operationally checked
Drivetrain
Left Drive Motor
Oil residue below guard
Right Drive Motor
Left Final Drive
Right Final Drive
Limited Function Check
The drivetrain was operational.
Chassis
Boom Condition
Stick Condition
Boom Base Pin and Bushings
Pin and Bushings Boom to Stick
Heavy movement
Pins and Bushings Stick to Coupler
Heavy movement
Turntable Bearing
Heavy movement
Bottom Covers
Limited Function Check
The main components were operational in a limited check.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Shoes
Left Grouser Height
22 mm
Left Track Links
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Shoes
Right Grouser Height
23 mm
Right Track Links
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
Specialty
Grapple
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | May 22, 2026 |
| Silicon | 0 PPM |
| Tin | 1.16 PPM |
| Silver | 0 PPM |
| Aluminum | 0.29 PPM |
| Chromium | 0 PPM |
| Lead | 2.63 PPM |
| Copper | 0.49 PPM |
| Nickel | 0.24 PPM |
| Iron | 1.65 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
