138 Photos
Link-Belt HC-234 140 ton 10x4x6 Lattice-Boom Truck Crane
Located
Spokane Valley, WA
Spokane Valley, WA
Serial number
22G7140B
22G7140B
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15912513
In yard
No
Features
Road Ranger 15 Speed Manual Transmission, Detroit 8V-92TAC 8 Cylinder Diesel Carrier Engine, Anti Two-Block, Cranesmart CS-14992.p Load Moment Indicator, Detroit Diesel Upper Engine, 230 ft Boom, 32 ft Fixed Jib, 3rd Drum, Johnson 2400 lb 5 Sheave 280000 lb Hook Block, 760 lb 3928 lb Overhaul Ball, 11200 lb Counterweight, Counterweight Removal System

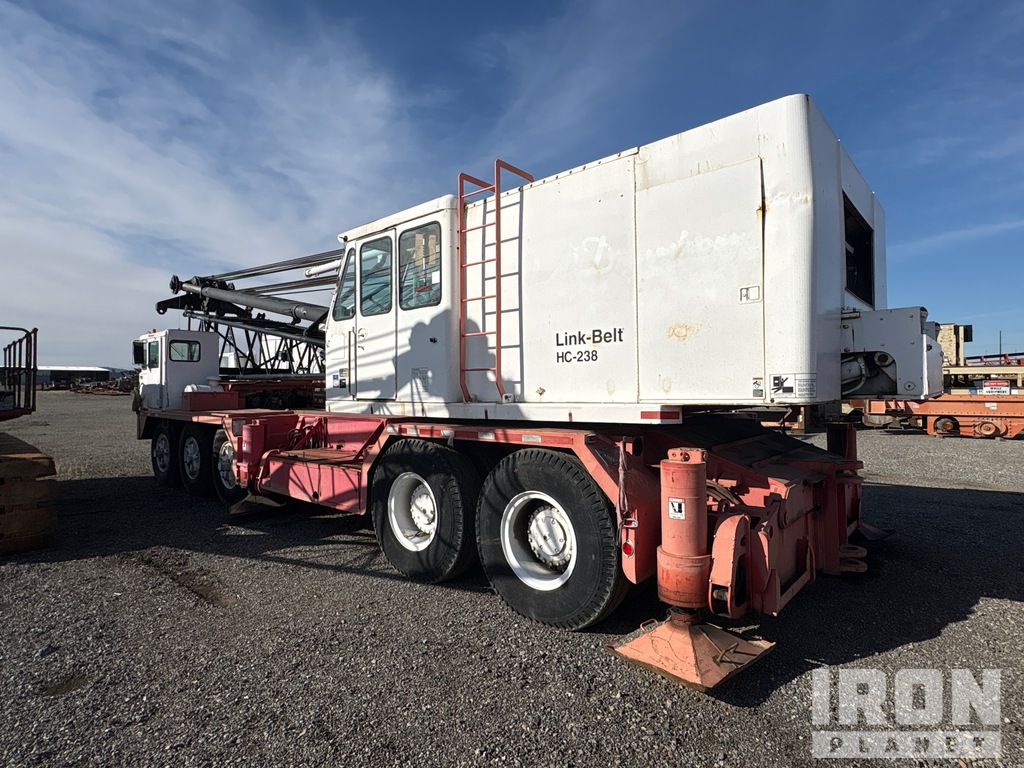

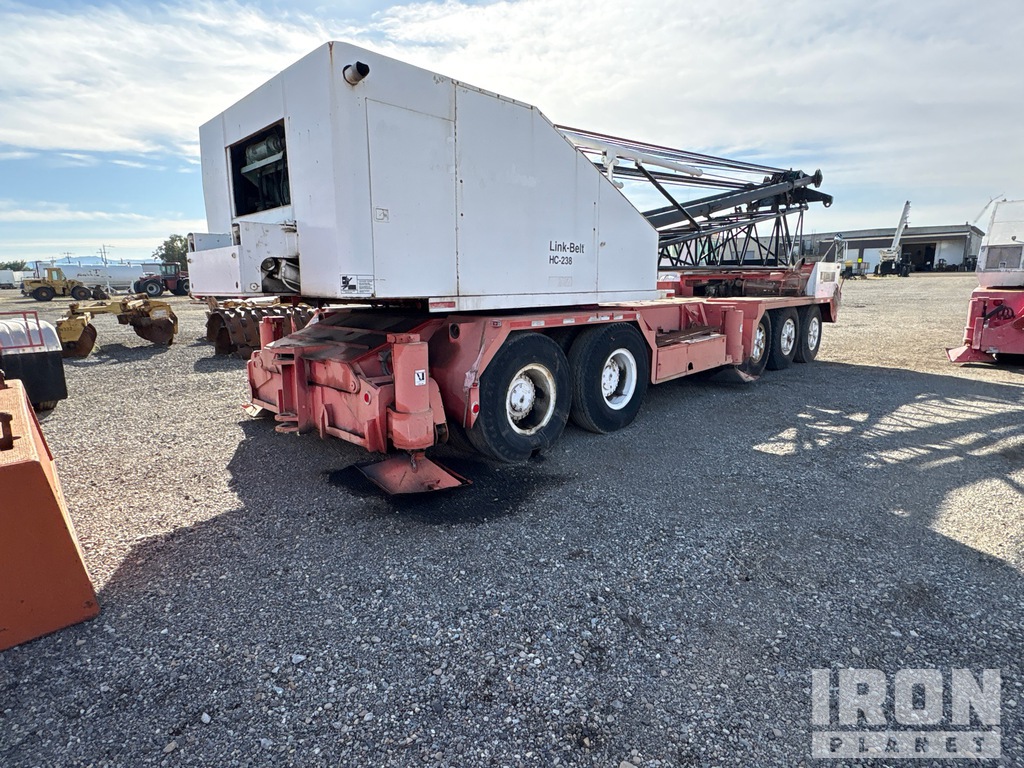

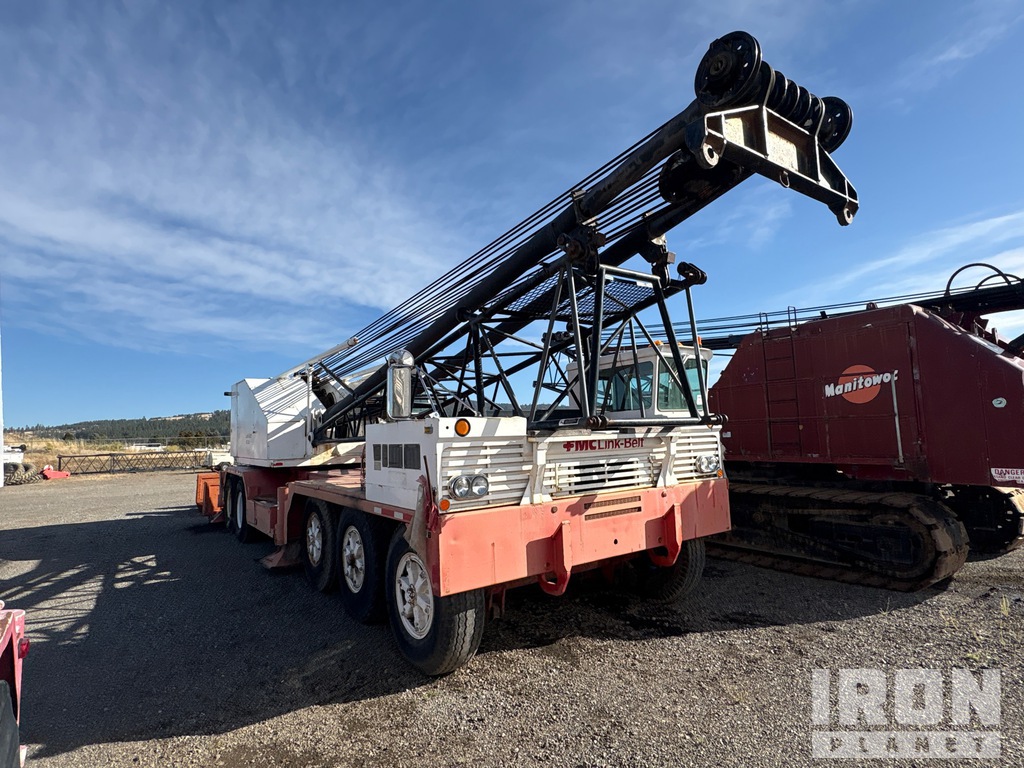

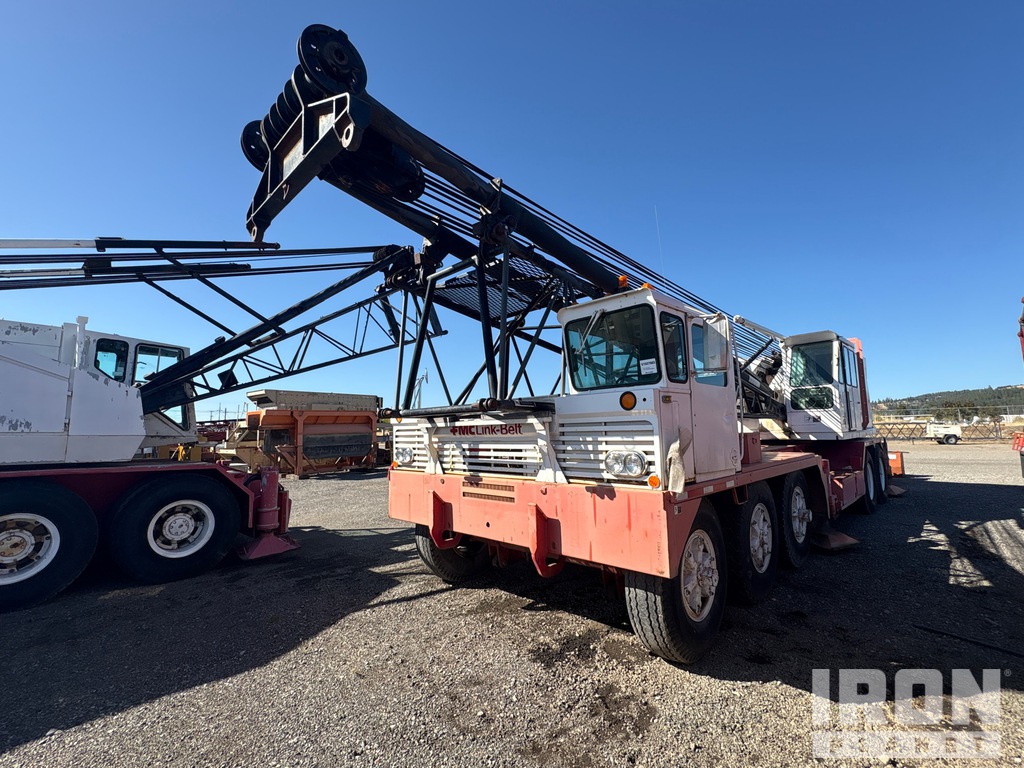

General Appearance
Serial Number / VIN
22G7140B
Hour Meter / Odometer
SEE REPORT 37710 Miles; The age and condition of the Truck Crane indicates more miles than shown on the odometer.-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Not operational
Safety Certification Label
There is a safety certification label with a date of 6/5/20
Safety Certification Report
Safety Certification Report Available
Load Chart
Yes
Safety
Travel Alarm
Inoperable
Horn
Inoperable
Seat Belts
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/Armrests
Mirrors
Steering Controls
Drivetrain Controls
Dash Console
Engine Oil Pressure
Gauge inoperable
Gauges
Operational
Heater
Operational
Limited Function Check
The item was not operational. The main components could not be operationally checked.
Engine
Emissions Status
No US EPA Label Present
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Underbody
Transmission
Operational
Clutch
Engages
PTO Pump
Not operationally checked
Steer Axle
Front Drive Axle
Rear Drive Axle
Axle Bump Stops
In place
Final Drives
Limited Function Check - Carrier
The drivetrain was operational without a load.
Carrier Chassis
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Stopped the machine while rolling
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
External Electrical / Air Connections
Not operationally checked
Frame Condition
Cross Members
Tire Size
14.00R24 Front tires
Tire Condition
Tread Depth
LF 20 /32", LR 18 /32", LMO 20 /32", LRI 21 /32", LRO 21 /32", RRI 10 /32", RRO 20 /32", RMI Na /32", RMO 27 /32", RR 27 fr /32", RF 20 /32", Tag LO 18 middle outer /32", Tag RO 27 middle outer /32"
Wheel Condition
Wheel Studs
Outrigger Beams
Outrigger Cylinders
Dripping leak on the left rear cylinder, Dripping leak on the right rear cylinder
Outrigger Pads
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Dripping leak
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Limited Function Check
The hydraulic system was operational.
Control Station - Upper
Mirrors
Glass
No visible damage
Seats/Armrests
Load Moment Indicator
Inoperable
Controls Hydraulic or Air
Load Charts
Posted on cab wall
Oil Pressure
The gauge registers in the operating range.
Gauges
Hoist Brakes
Heater
Inoperable
Limited Function Check
The item was not operational. The main components could not be operationally checked.
Upper Engine
Emission Certification Label
None found
Starter
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check (Engine)
The engine would crank but would not run. Static Check Only
Crane Superstructure
Hoist Drums
Hydraulic Operation
Boom Drums
Hydraulic Operation, Inoperable
Hoist and Boom Clutches
Main Boom Pins
Pendant Line (Boom Tension Line)
Cable Type
Point Sheaves
Boom Point Section
Gantry/Mast
Main Boom Chords
Boom Length
230 ft overall length, 1x10 , 1x20’, 1x40’, 2x 30’ Sections
JIB Length
32 ft overall length, ( 6 ) 130 ft Center boom sections
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Hook Rollers
Swing Drive
Limited Function Check
The main chassis components could not be operated.
Specialty
Jib
Main Load Block
Overhaul Ball
Fairlead
Third Drum
Counterweights
