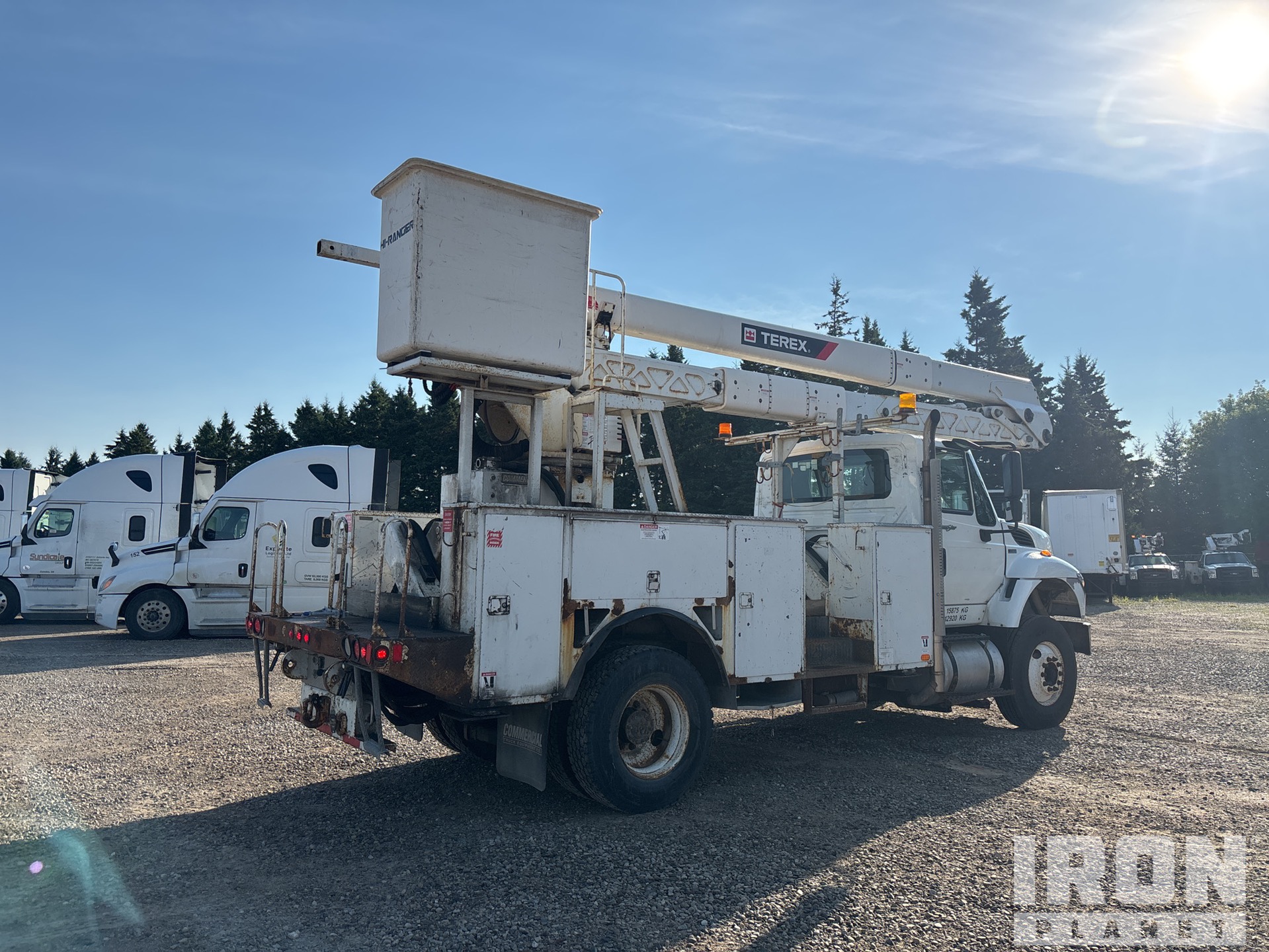

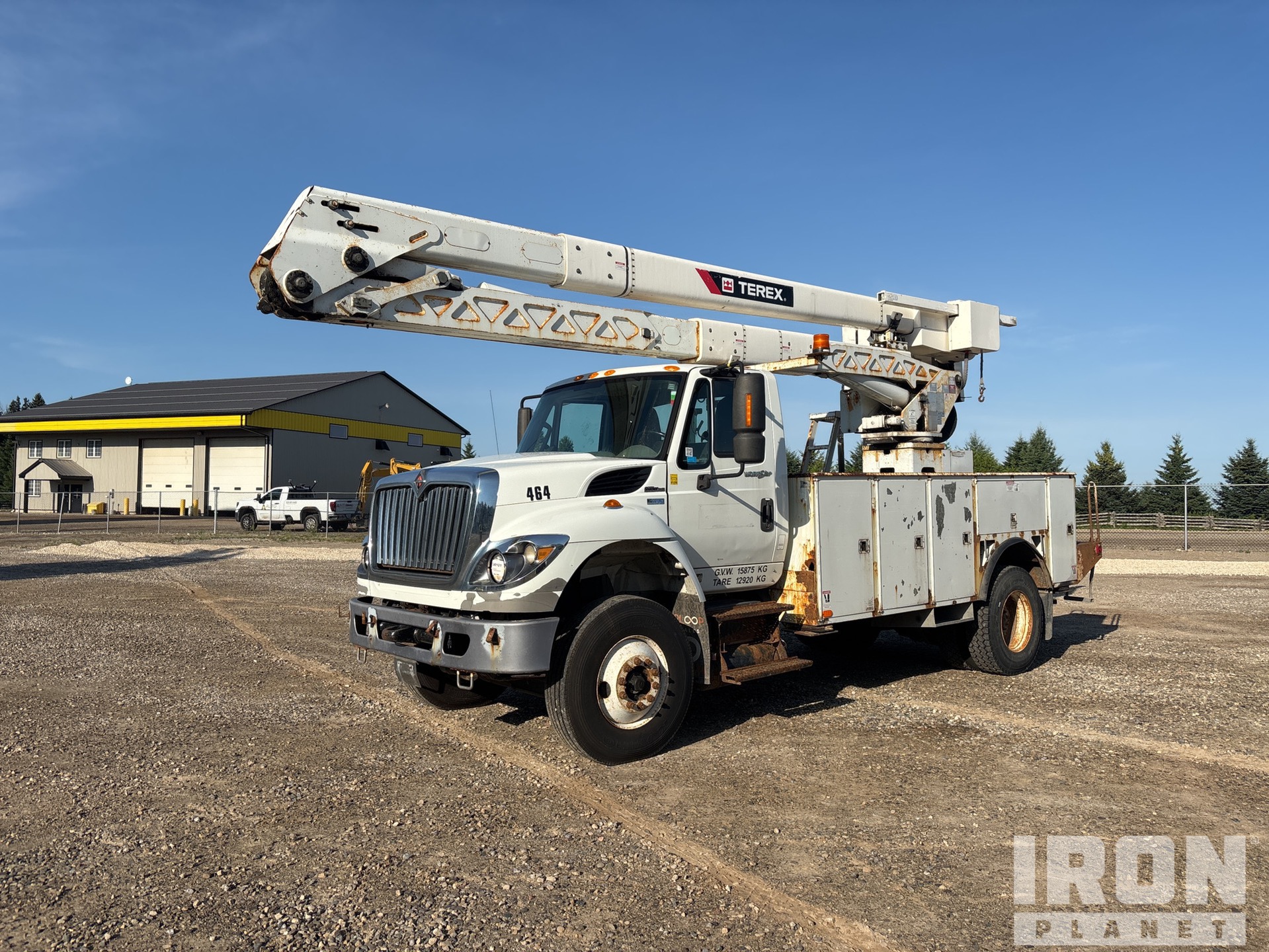

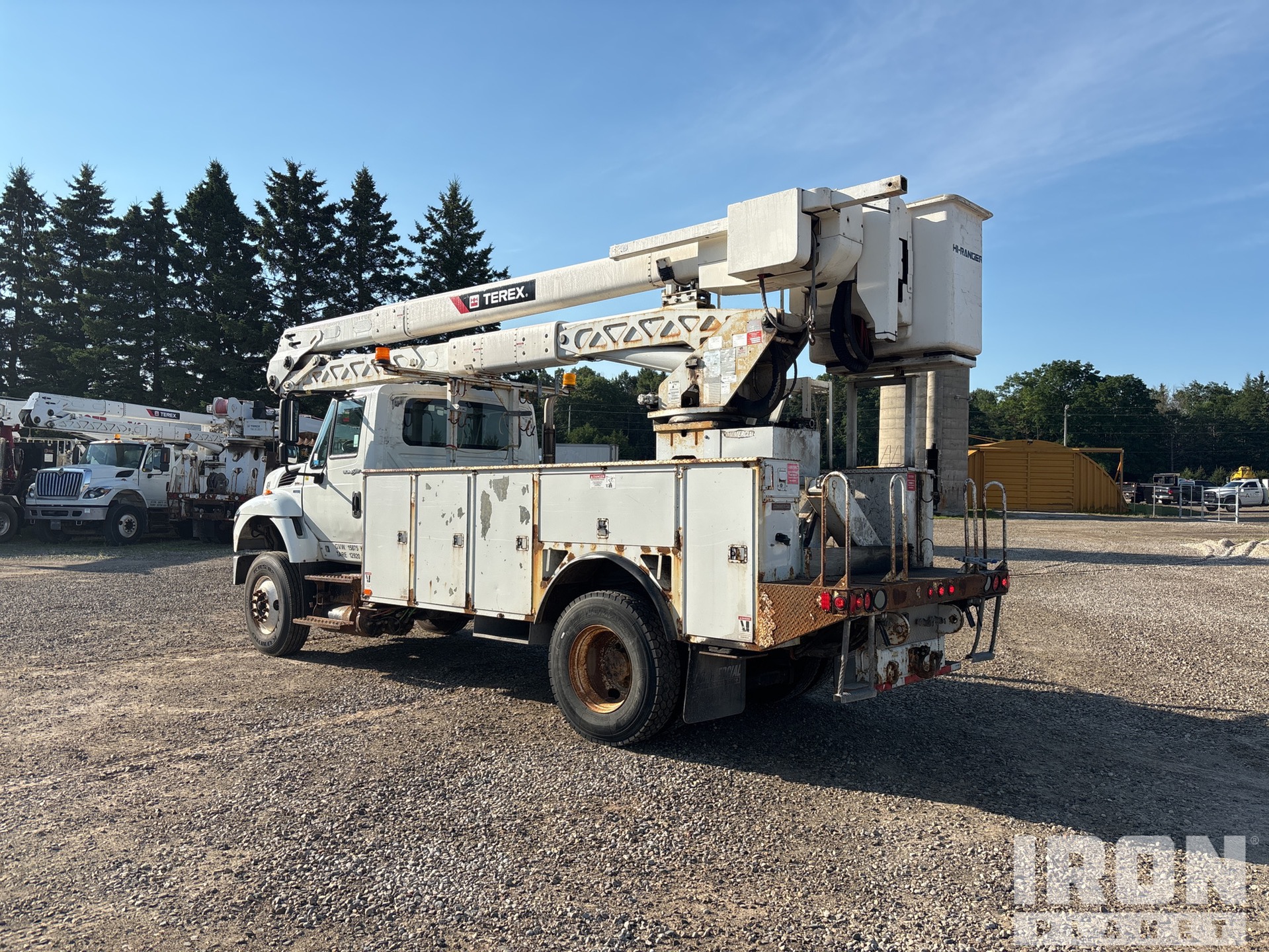

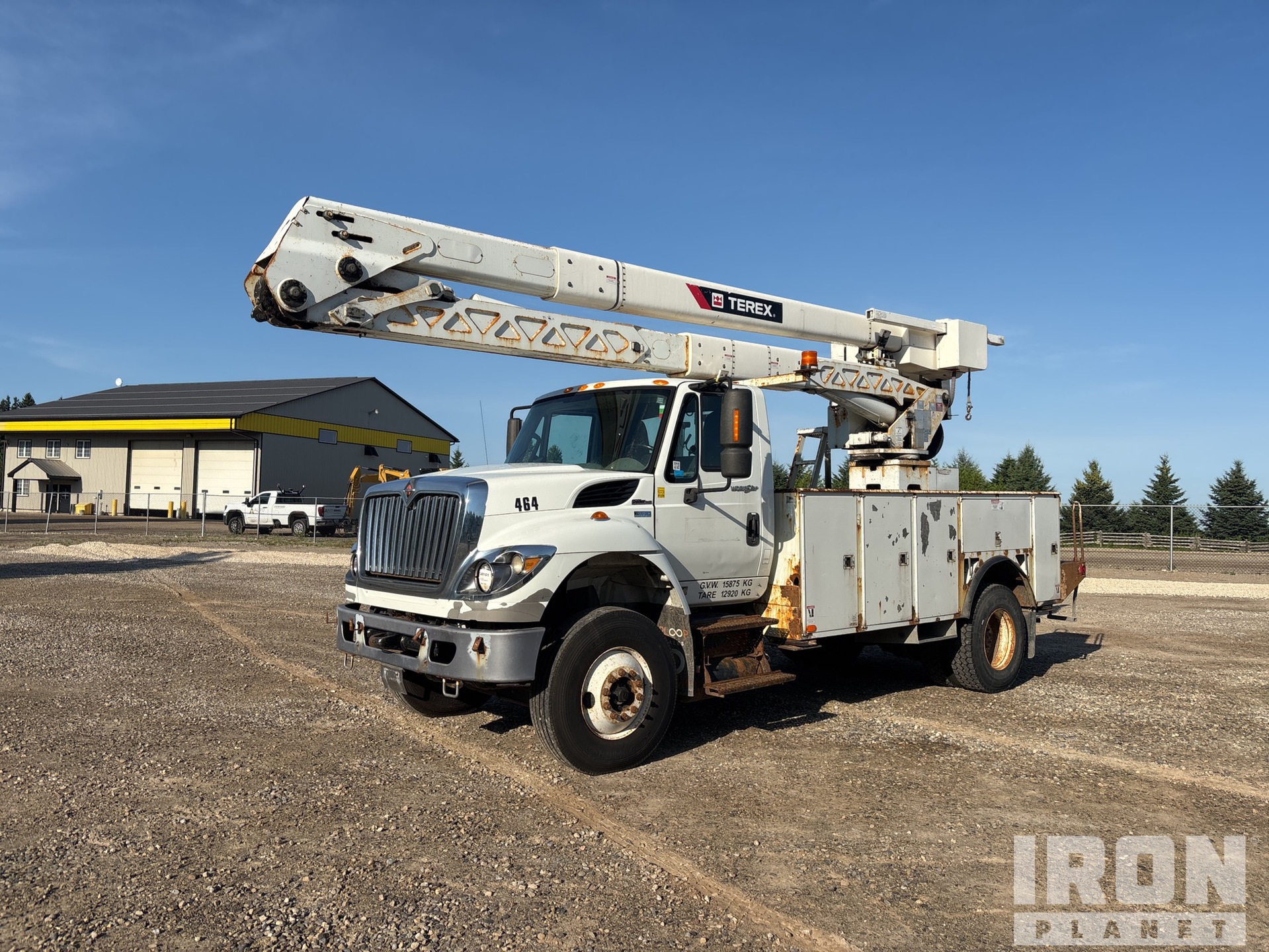

2012 Terex Hi-Ranger HRX-55 55 ft on 2013 International 7400 HRX55 4x2 Cable Placer Bucket Truck
Located
Grand Valley, ON, CAN
Grand Valley, ON, CAN
Usage
89,076 km (55,350 mi)
89,076 km (55,350 mi)
Serial number
1HTWCAZR4DJ202125
1HTWCAZR4DJ202125
Loading...
Detailed equipment information
A qualified Ritchie Bros. employee collected detailed equipment information and performed functional tests on the key components of this asset. You, or a proxy, may also inspect any items on site prior to bidding on auction day.
ID number
#15161630
In yard
No
Features
International MaxxForce 9 6 Cylinder 9.3 L Diesel 330 hp Engine, 2012 US EPA Label, Positive Air Shutoff, 7641 Engine hrs, Allison Automatic Transmission, Differential Lock, 14000 lb Front Axle, 21000 lb Rears, 35000 lb GVWR, Air Ride Cab, 12R22.5 Front Tires, 11R22.5 Rear Tires, Air Ride Suspension, 187 in Wheelbase, PTO, 700 lb Capacity, Rear Mounted, Insulated Two-Person Articulated Boom, Lower Boom Fiberglass Insert, Utility Body, Turret Mounted Winch, A-Outriggers, Rear Outriggers, 16 ft x 94 in Bed, Pintle Hitch
General Appearance
Featured Photo
Serial Number / VIN
1HTWCAZR4DJ202125
Frame Stamp Serial Number/VIN Photo
Hour Meter / Odometer
89076 km-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Engine
Emissions Information
2012 US EPA Label
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Diesel Particulate Filter
Radiator
Oil Leaks
Turbo return line. Base of oil filler tube.
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
After jump starting, the engine ran.
Cab
Engine Hours
7641 Engine hrs
Mirrors
Window Controls
Both Power
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Air horn operational, Electric horn operational
Oil Pressure
The gauge registers in the operating range. 31 PSI
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
Operational
Clutch
Engages
PTO Control
Operational
ECM Miles
55349 ECM mi
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Underbody
Transmission
Operational
Drive Shaft
Power Take Off
Operational
Steer Axle
Limited Function Check
The drivetrain was operational.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Dripping leak
Hoses (Hydraulic)
Boom Lift Cylinder
Dripping leak
Secondary Boom Cylinder
Stabilizer Cylinders
Cylinders
Dripping leak on the left cylinder
Auxiliary Hydraulic Plumbing
Capped off, Rear
Limited Function Check
The hydraulic system was operational.
Configuration
Bed Body
Support Frame
Limited Function Check
The main chassis components were operational in a limited check.
Tool / Work Box
Painted to match body
Steering Linkage
Brake Type
Air brakes
Brake Lines/Hoses
Not operationally checked
Park Brake
Held against power
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Suspension Bushings
Cab Suspension Air Bags
External Electrical / Air Connections
Not operationally checked
Frame Condition
Wheel Condition
Wheel Studs
Dielectric Certification
There is a Dielectric Certification label with an expiration date of March 2021
Turntable Bearing
Boom Condition
Work Bucket
Hydraulic Controls
Oil Sample Analysis
Oil Sample Analysis
| engine | hydraulic | |
|---|---|---|
| date of analysis | Aug 14, 2025 | Aug 14, 2025 |
| Silicon | 2.51 PPM | 2.47 PPM |
| Tin | 0.22 PPM | 0.01 PPM |
| Silver | 0 PPM | 0 PPM |
| Aluminum | 8.13 PPM | 0.25 PPM |
| Chromium | 0.08 PPM | 0.1 PPM |
| Lead | 0.38 PPM | 0.65 PPM |
| Copper | 0.78 PPM | 4.19 PPM |
| Nickel | 0.44 PPM | 0.16 PPM |
| Iron | 37.96 PPM | 3.13 PPM |
| Glycol | NEG | N/A |
| Water | NEG | N/A |
| Fuel | <5% | N/A |
