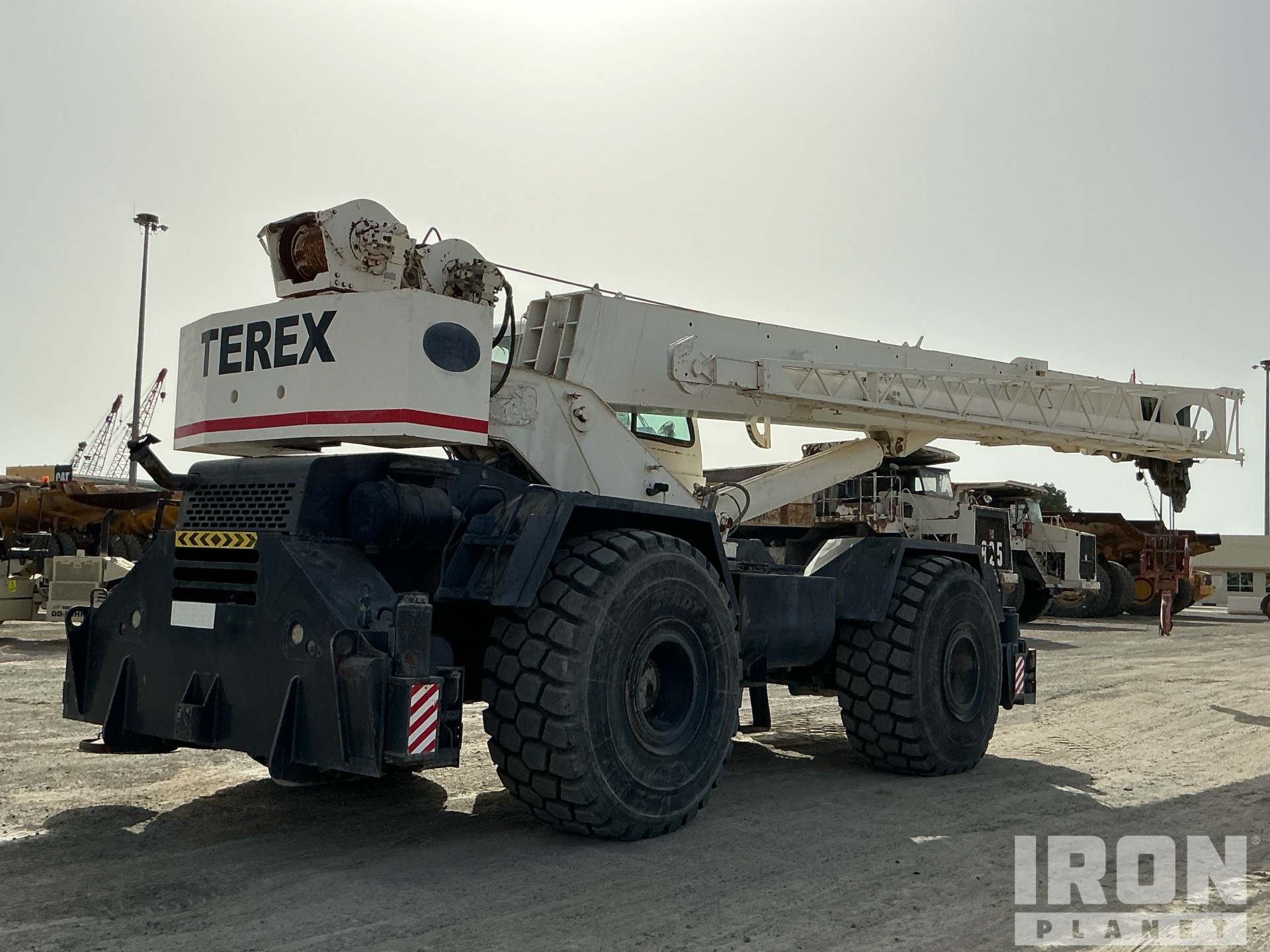

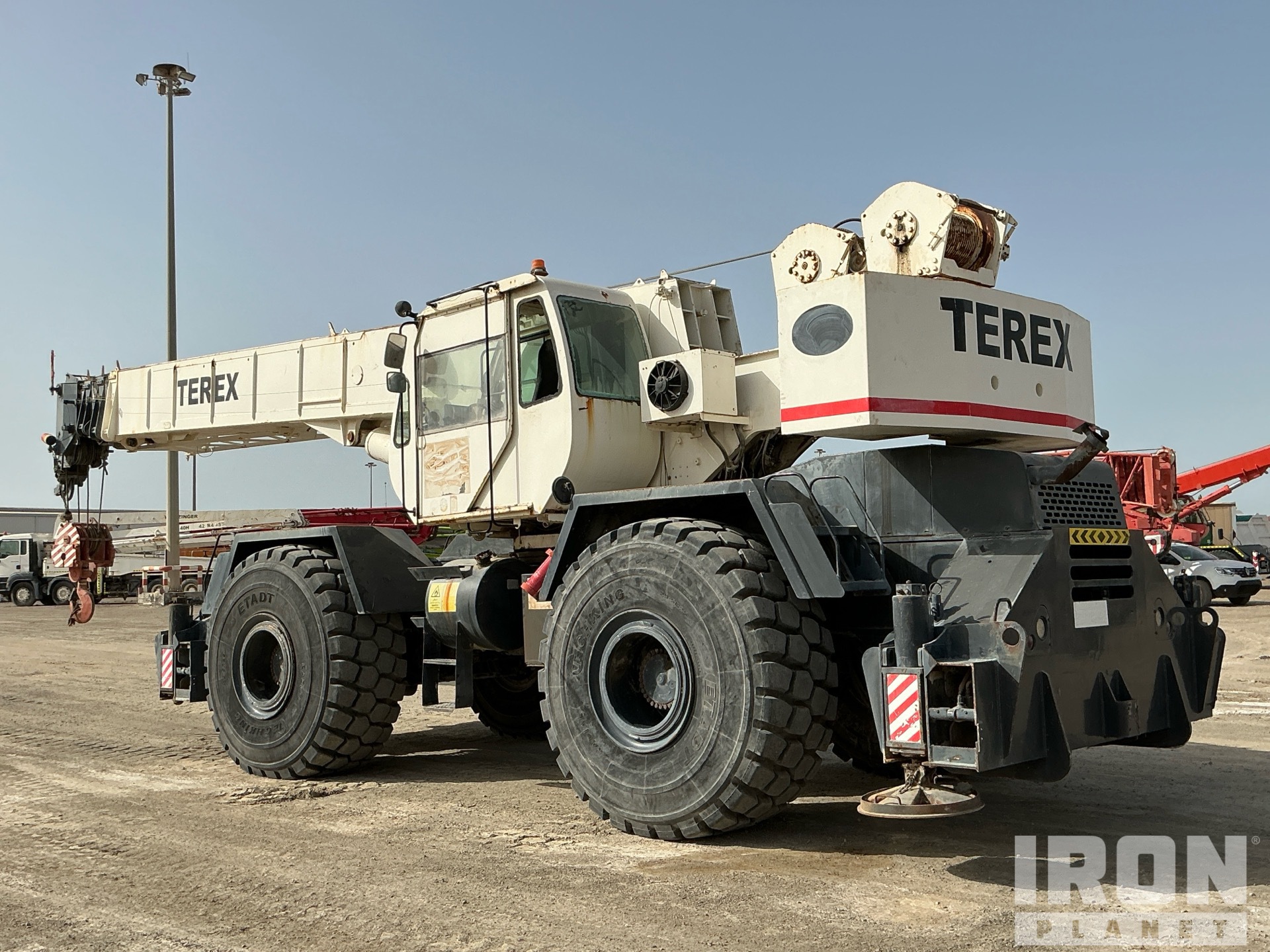

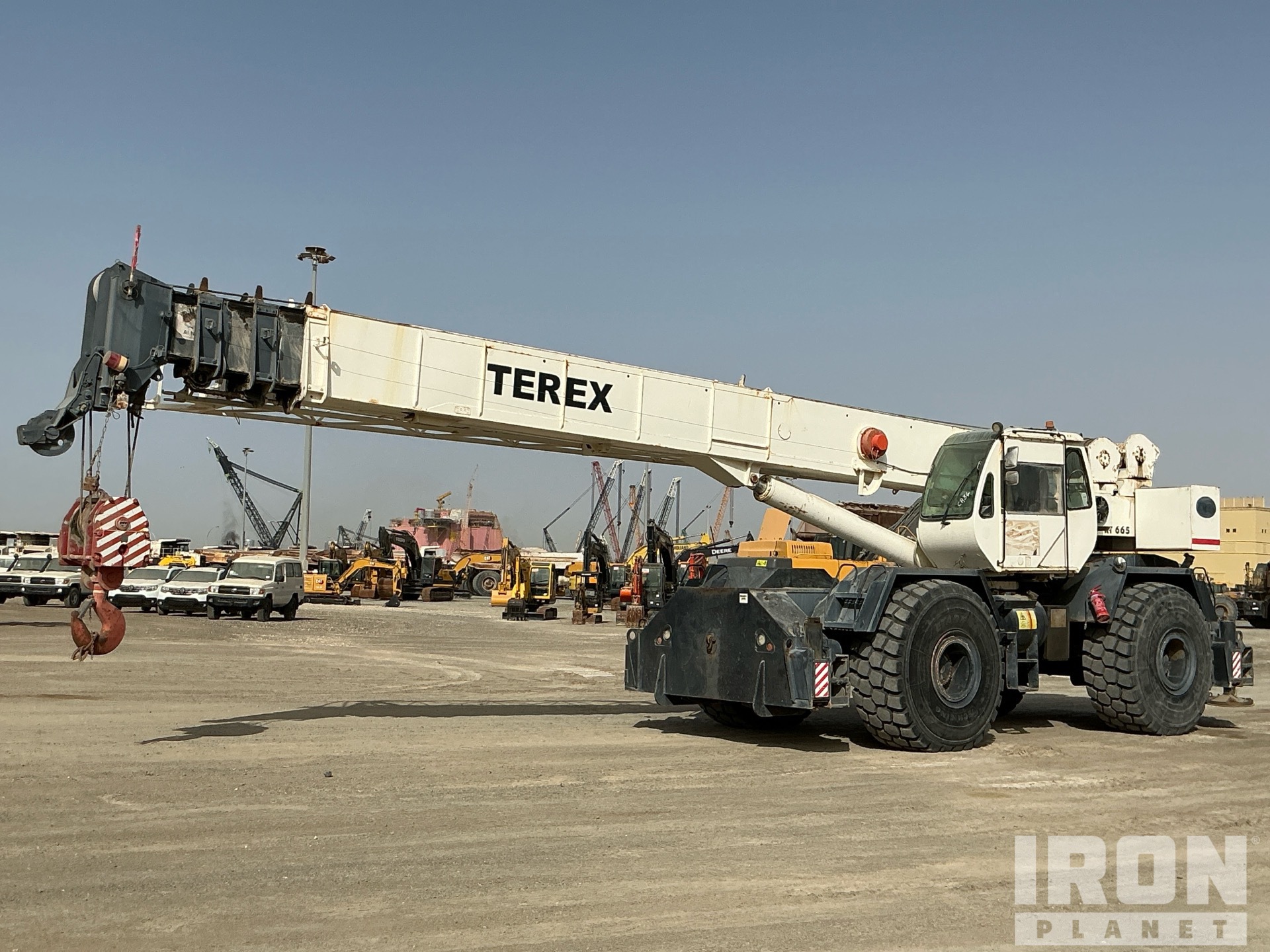

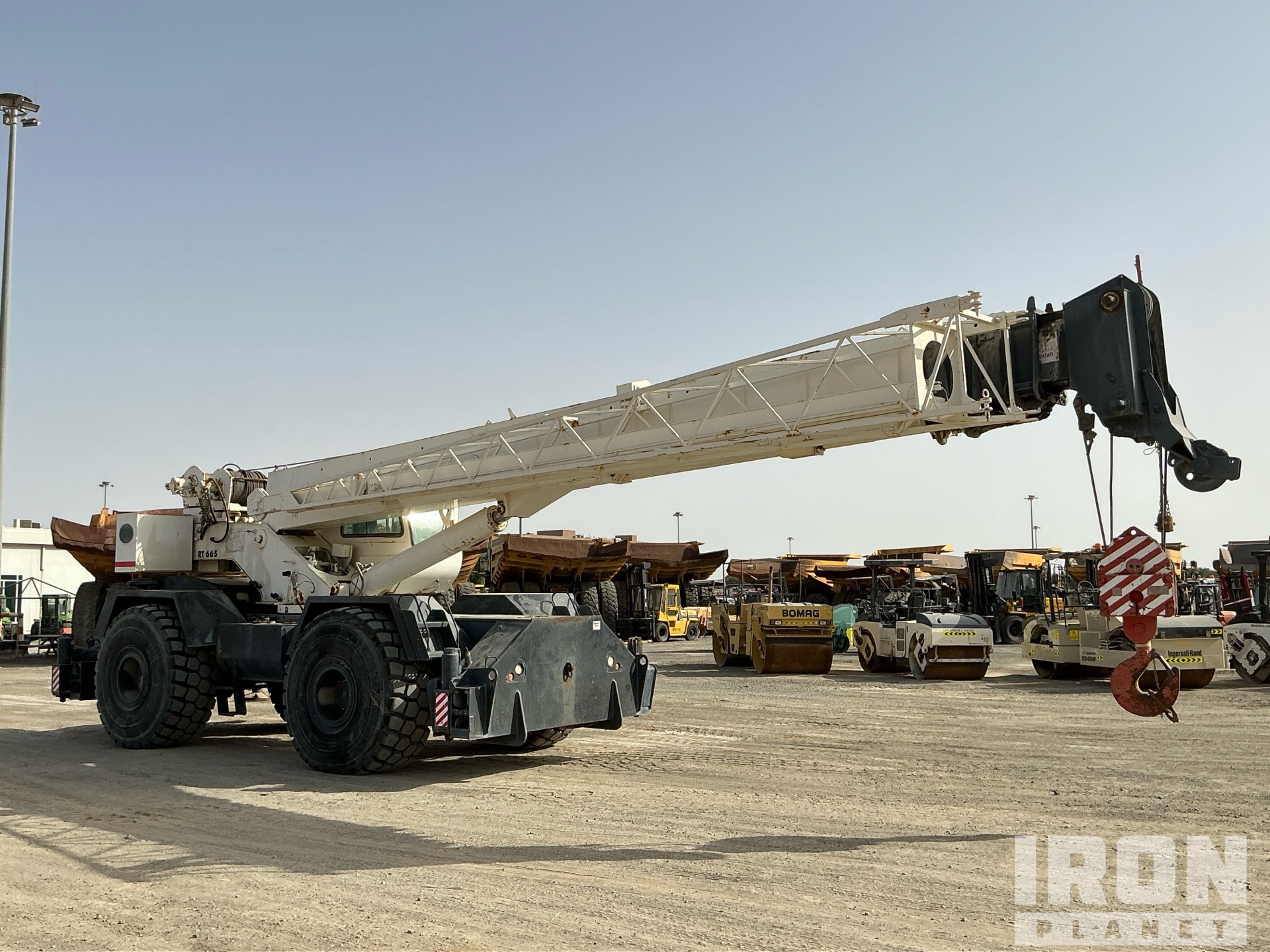

2002 Terex RT665 65 ton 4x4x4 Rough Terrain Crane
Located
Jebel Ali Free Zone, ARE
Jebel Ali Free Zone, ARE
Serial number
13037
13037
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15131111
In yard
Yes
Features
Air Conditioner, Anti Two-Block, PKSIL KAB-X Load Moment Indicator, 2655 hrs Crane Operation, 2002 US EPA Label, Cummins QSB5.9-C 6 Cylinder 160 kW Diesel Engine, Auxiliary Hoist, Rooster Sheave, Extendable Swingaway Jib, 1204 lb 60 ton Capacity Johnson 5 Sheave Hook Block
General Appearance
Serial Number / VIN
13037, No plate found
Hour Meter / Odometer
Meter reading could not be obtained-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Inoperable
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Upper Control Station
Hours of Crane Operation
2655 hrs Crane Operation, Inoperable
Control Station
Mirrors
Glass
Left side of the cabin glass misisng
Seats/Armrests
Load Moment Indicator
Inoperable
Anti Two Block
Inoperable
Hydraulic Controls
Rubber boot damage
Drivetrain Controls
Wear
Oil Pressure
The gauge registers in the operating range.
Gauges
Operational
Air Conditioner
Inoperable
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
Other 2002 US EPA Label
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Fuel Leaks
No dripping leaks The wet part of the engine is because of conducting the fuel system air bleeding
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Transmission
Operational, Dripping leak
Front Drive Axle
Rear Drive Axle
Final Drives
Limited Function Check
The drivetrain was operational.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Outer mantle damaged
Swing Motor
Main Hoist
Auxiliary Hoist
Hydraulic lines not connected, no wire rope
Lift Cylinders
Telescopic Boom Cylinders
Dripping leak, Not fully retracting
Cylinder Pins and Bushings
Limited Function Check
The hydraulic system was operational.
Chassis
Steering Linkage
Steering Cylinders
Steering Wheel Play
Suspension Cylinders
Brake Type
Air over hydraulic
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Limited Function Check - Brakes
The service brakes were operational.
Turntable Bearing
Frame Condition
Tire Size
All of the tires are the same size
Left Front Tire
Left Rear Tire
Right Rear Tire
Right Front Tire
Wheel Condition
Wheel Studs
Limited Function Check
The main chassis components were operational in a limited check.
Outrigger Cylinders
Outrigger Condition
Outrigger Beams
Right rear outrigger beam not retracting
Outrigger Floats/Pads Condition
Heavy wear, Missing, Only one 3 are missing
Main Boom Pins
Main Boom Sections
Sheaves
Heavy wear
Boom Head Section
Heavy wear
Wear Pads
Heavy wear
Boom Angle Indicator
Doesn't swing free
Limited Function Check
The main crane components functioned when checked without a load.
Specialty
Jib
Main Load Block
Heavy Wear
Counterweights
