146 Photos
1981 Link-Belt HC-218A 100 ton Lattice-Boom Truck Crane
Located
Spokane Valley, WA
Spokane Valley, WA
Serial number
18H1443B
18H1443B
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15912511
In yard
No
Features
Eaton Fuller 15 Speed Manual Transmission, 52 hrs Carrier Engine, Detroit 6v92TA 6 Cylinder Diesel Carrier Engine, Detroit 6.7 L Diesel Upper Engine, 180 ft Boom, 30 ft Fixed Jib, 3rd Drum, Johnson 1500 lb 3 Sheave 60 ton Hook Block, 13500 lb Counterweight, Counterweight Removal System

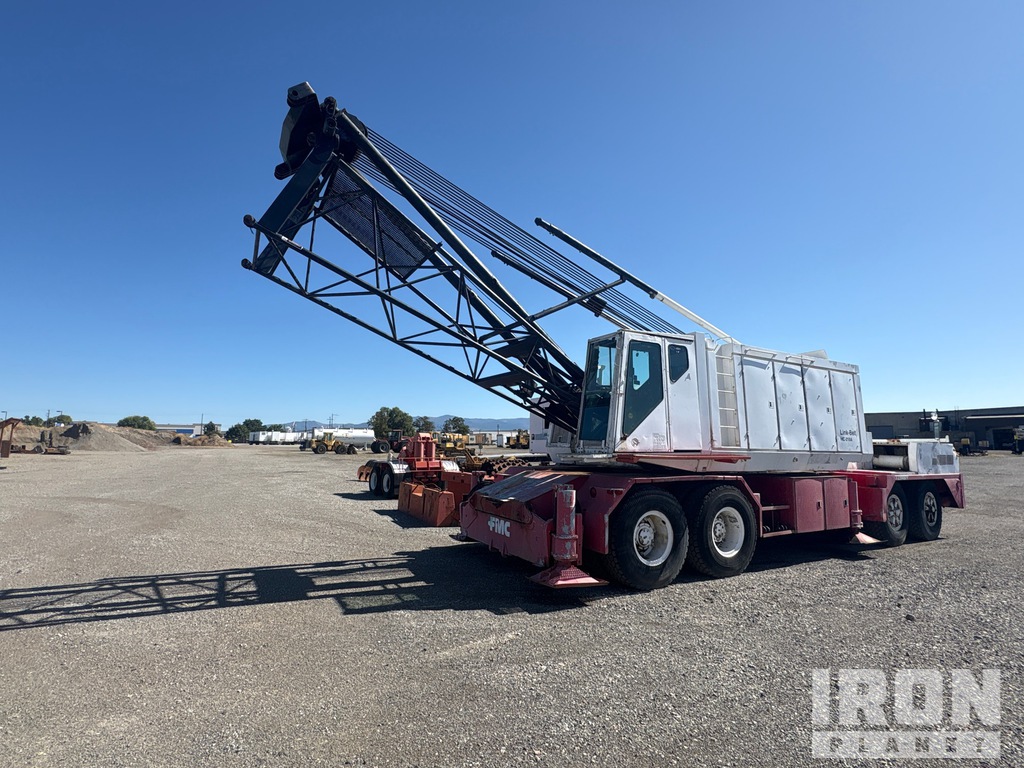

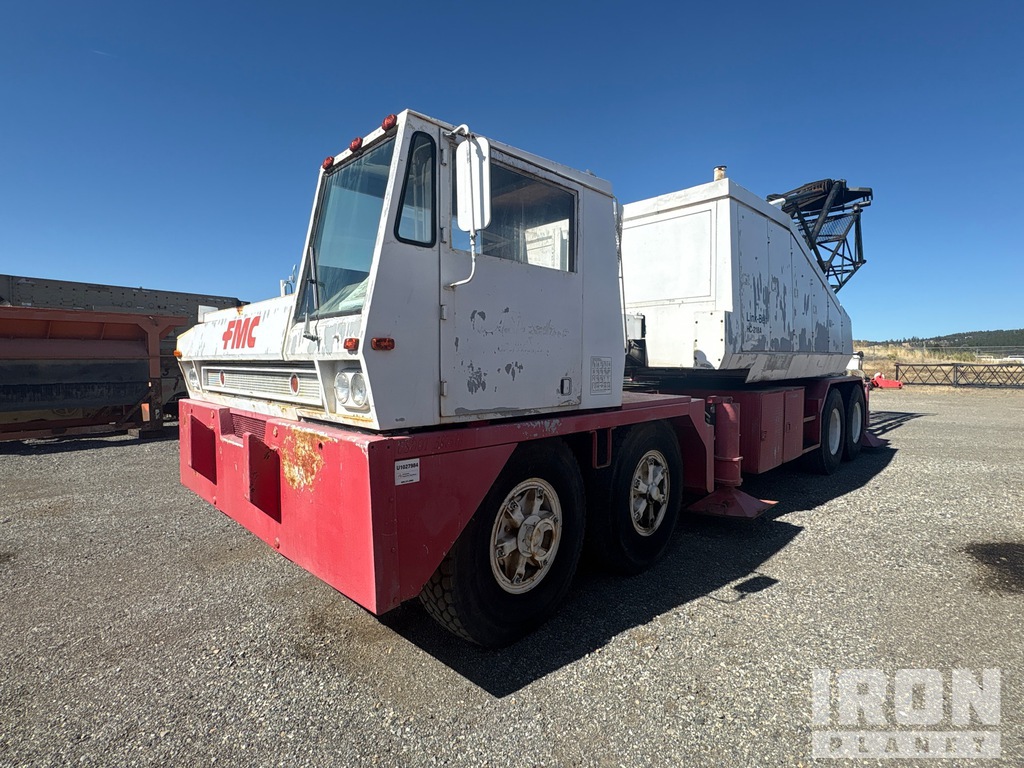

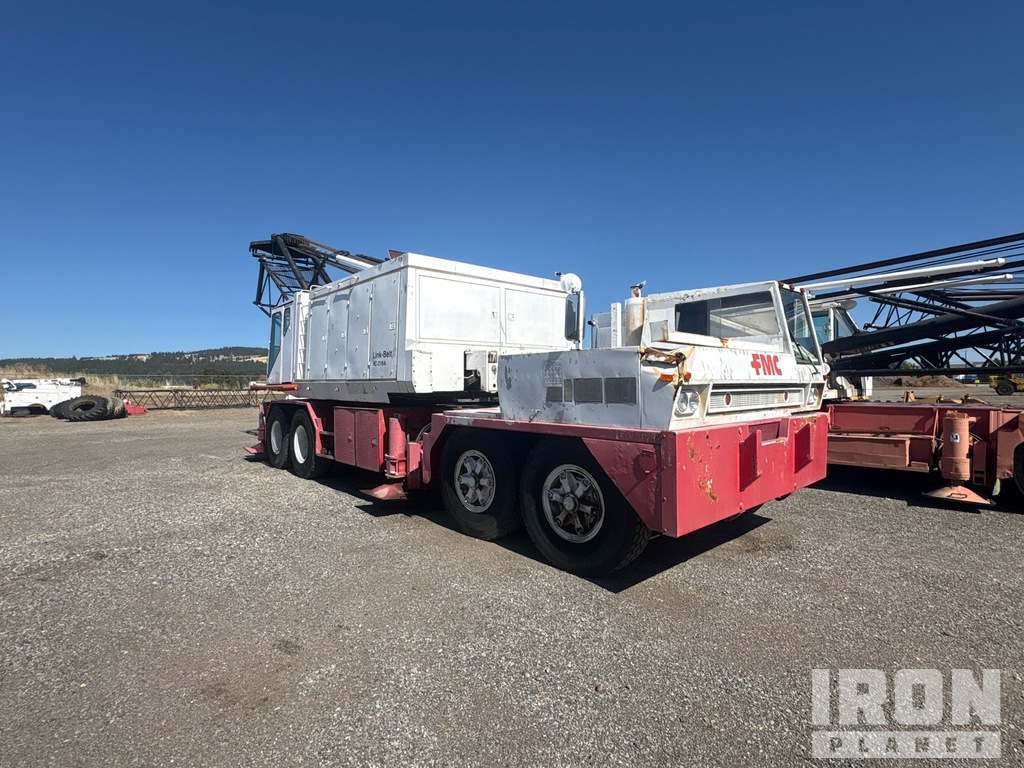

General Appearance
Serial Number / VIN
18H1443B
Hour Meter / Odometer
SEE REPORT 12304 Miles; The age and condition of the Truck Crane indicates more miles than shown on the odometer.-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Indication of Additional Hours
There is an hour meter replacement/change label that has the following reading on it: 52
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety Certification Label
There is a safety certification label with a date of 10/1/20
Safety Certification Report
Safety Certification Report Available
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Missing
Seat Belts
Operational
Safety Lock Out/Stop
Missing
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Lower/Carrier Engine Hours
52 hrs Carrier Engine
Seats/Armrests
Mirrors
Steering Controls
Drivetrain Controls
Dash Console
Engine Oil Pressure
The gauge registers in the operating range.
Gauges
Operational, Converter temp and water temp gauges are inoperable
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
No US EPA Label Present
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Underbody
Transmission
Operational
PTO Pump
Operational
Steer Axle
Front Drive Axle
Rear Drive Axle
Axle Bump Stops
In place
Final Drives
Limited Function Check - Carrier
The drivetrain was operational without a load.
Carrier Chassis
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Stopped the machine while rolling
Limited Function Check - Brakes
The service brakes were operational.
Springs/Hangers Condition
External Electrical / Air Connections
Not operationally checked
Frame Condition
Cross Members
Tire Size
All of the tires are the same size, 14.00/R24 Front tires
Tire Condition
Tread Depth
LF 28 /32", LR 27 /32", LMI 27 /32", LMO 28 /32", LRI 28 /32", LRO 27 /32", RRI 28 /32", RRO 28 /32", RMI 27 /32", RMO 26 /32", RR 28 /32", RF 28 /32"
Wheel Condition
Wheel Studs
Outrigger Beams
Outrigger Cylinders
Dripping leak on the right front cylinder, Other Appears to be from beam section. The outrigger controls are inoperable.
Outrigger Pads
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Dripping leak
Main Hoist
Limited Function Check
The hydraulic system could not be operationally checked.
Upper Control Station
Hour Meter Reading
286 Hours-IronPlanet makes no guarantees as to actual hours/miles; we can only report what can be visually observed.
Control Station - Upper
Glass
No visible damage
Seats/Armrests
Controls Hydraulic or Air
Load Charts
Posted on cab wall
Oil Pressure
The gauge registers in the operating range. 80 PSI
Gauges
Hoist Brakes
Heater
Inoperable
Limited Function Check
The main components are in place and operational as noted.
Upper Engine
Emission Certification Label
None found
Starter
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check (Engine)
The engine started and ran.
Crane Superstructure
Hoist Drums
Hydraulic Operation
Boom Drums
Hydraulic Operation, Inoperable
Hoist and Boom Clutches
Heavy wear
Main Boom Pins
Pendant Line (Boom Tension Line)
Cable Type
Point Sheaves
Boom Point Section
Gantry/Mast
Boom Stops
Main Boom Chords
Boom Length
180 ft overall length, 7 Sections, 30 ft Length, 30 ft base section, 3 x30ft section 2 x 20 ft section 1x 10ft section 1x 21.6 section
JIB Length
30 ft overall length, ( 1 )
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Hook Rollers
Swing Drive
Swing brake slow to respond
Limited Function Check
The main chassis components functioned when checked without a load.
Specialty
Jib
Main Load Block
Fairlead
Third Drum
Counterweights
